Single Leg with Hook

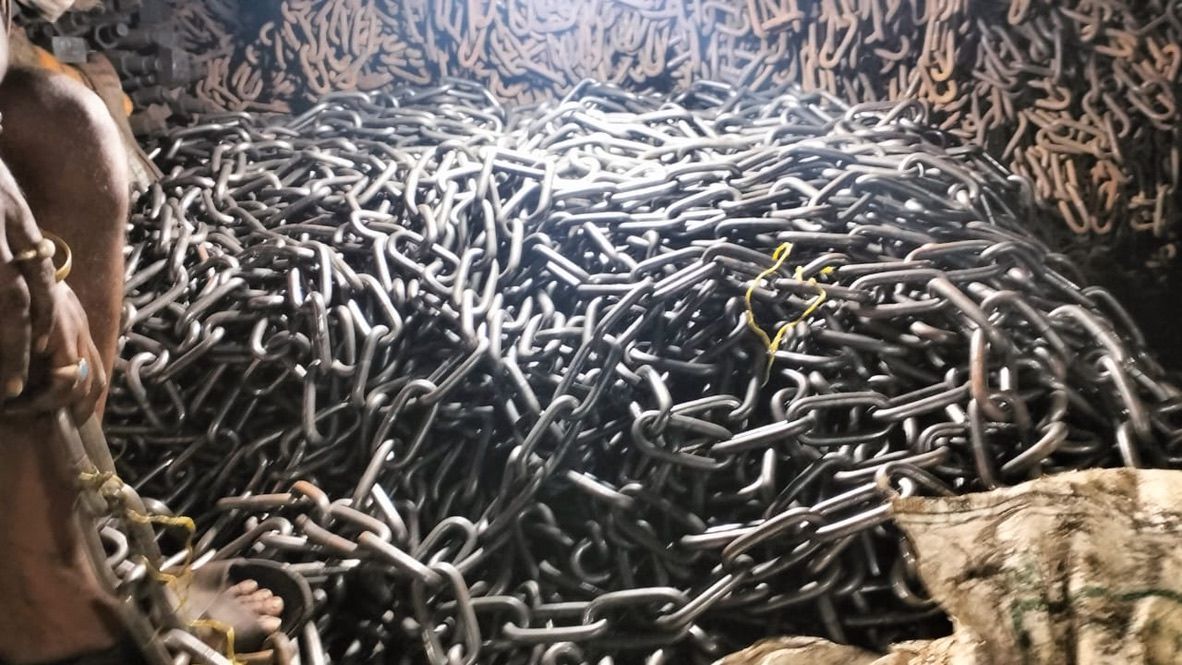

Single Leg Chain Sling
Single leg chain slings provide excellent durability and resistance to abrasion for vertical lifting applications. Made from G80 or G100 alloy steel chain with various hook options. The adjustable feature allows length modification for different lifting requirements.
G80 or G100 alloy steel chain
Sling hook with safety latch
Adjustable or fixed length
Self-locking hook options
Heat treated and proof tested
Working Load Limit (WLL) Chart
| Size | Working Load Limit |
|---|---|
| 7mm G80 | 1.1T |
| 8mm G80 | 1.4T |
| 10mm G80 | 2.3T |
| 13mm G80 | 3.9T |
| 16mm G80 | 6.0T |
| 18mm G80 | 7.6T |
| 20mm G80 | 9.4T |
| 22mm G80 | 11.3T |
| 26mm G80 | 16.0T |
| 32mm G80 | 24.0T |
WLL shown is for vertical lift. Reduce capacity for angled lifts.
Technical Specifications
| Configuration | Single Leg |
| Chain Grade | G80, G100 |
| Chain Size | 7mm to 32mm |
| Working Load Limit | 1.1T to 32T |
| Hook Type | Sling hook, Grab hook |
| Safety Feature | Self-locking latch |
| Temperature Range | -40°C to +200°C |
| Standard | EN 818-4, ASME B30.9 |
