Lifting Equipment
Pulleys & Blocks

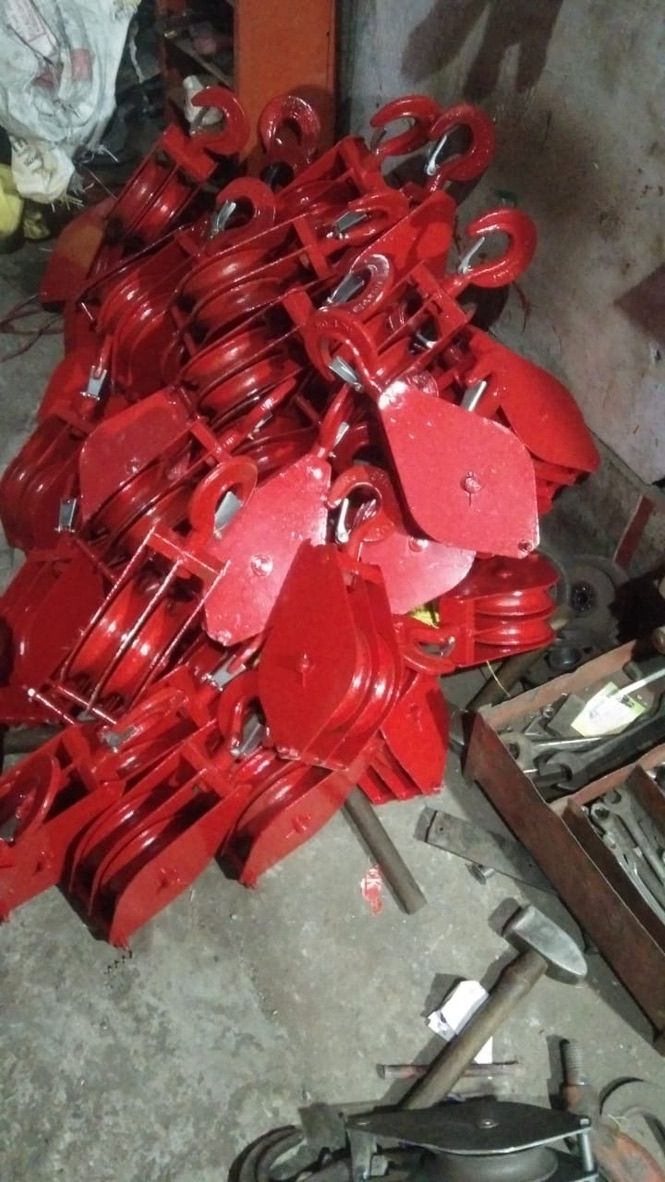

Pulley blocks and sheaves are essential components in lifting and rigging systems, providing mechanical advantage and direction change for ropes and cables. Our range includes wire rope pulleys with hardened steel sheaves, bronze bushings, and grease fittings for smooth operation under heavy loads.
Hardened steel sheaves for wire rope
Bronze bushings with grease fittings
Single, double, and triple sheave options
Marine-grade construction available
Swivel eye or hook attachments
ISO Certified
All India Delivery
Test Certified
For bulk orders and custom requirements:
Technical Specifications
| Sheave Diameter | 100mm - 800mm |
| Rope Capacity | 6mm - 32mm diameter |
| Working Load | 0.5T - 30T |
| Bushing Type | Bronze with grease fitting |
| Side Plates | Steel, powder coated |
| Attachment | Swivel eye or hook |
| Standard | EN 13157, ASME B30.26 |
Applications
Crane rigging systems
Marine trawling operations
Construction lifting
Mining hoisting
Oil and gas platforms
Theater/stage rigging
Agriculture applications
Forestry and logging
Frequently Asked Questions
What is the mechanical advantage of a pulley block?
A single pulley provides direction change only. Double pulleys provide 2:1 mechanical advantage, triple pulleys 3:1, etc. This reduces the force needed to lift a load but increases the rope length required.
