Wire Rope Grips
Wire rope grips (also known as bulldog grips or wire rope clips) are essential for creating secure eyes and terminations in wire rope assemblies. We supply high-quality wire rope grips with color-coded saddles, drop-forged construction, and precise threading for reliable performance. Available in various sizes and materials to meet international safety standards.
For bulk orders and custom requirements:
Technical Specifications
| Wire Rope Size | 1/4" - 3" (6mm - 76mm) |
| Clip Types | DIN 741, US Type, JIS Type |
| Grip Sizes | 17 sizes available |
| Material | Malleable Iron, Carbon Steel, SS 304 |
| Finish | Galvanized, Self Color, SS |
| Standard | EN 13411-5, ASME B30.26 |
Wire Rope Grips & Clips

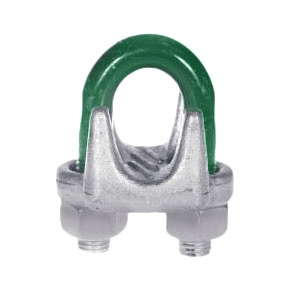

Heavy-duty wire rope grips with color-coded saddles for secure wire rope terminations. Available in 17 sizes from 1/4" to 3" diameter.
1Wire Rope Grips — Dimensions and Weights
| Dia. (mm) | A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | H (mm) | L (mm) | Weight (kg/100) |
|---|---|---|---|---|---|---|---|---|
| 1/4 | 8 | 34 | 19 | 13 | 37 | 30 | 17 | 8 |
| 5/16 | 10 | 45 | 22 | 19 | 43 | 33 | 18 | 14 |
| 3/8 | 11 | 49 | 26 | 19 | 49 | 42 | 25 | 19 |
| 1/2 | 13 | 61 | 30 | 26 | 58 | 48 | 27 | 34 |
| 5/8 | 16 | 74 | 33 | 32 | 64 | 52 | 33 | 45 |
| 3/4 | 14 | 86 | 38 | 37 | 72 | 57 | 37 | 68 |
| 7/8 | 19 | 98 | 45 | 40 | 80 | 62 | 40 | 108 |
| 1 | 19 | 108 | 48 | 46 | 88 | 67 | 44 | 113 |
| 1 1/8 | 19 | 117 | 51 | 51 | 91 | 72 | 48 | 140 |
| 1 1/4 | 22 | 130 | 59 | 54 | 105 | 79 | 56 | 207 |
| 1 3/8 | 22 | 140 | 60 | 59 | 108 | 79 | 58 | 234 |
| 1 1/2 | 22 | 147 | 66 | 60 | 112 | 86 | 64 | 266 |
| 1 3/4 | 29 | 175 | 78 | 74 | 134 | 97 | 78 | 441 |
| 2 | 32 | 195 | 86 | 78 | 152 | 113 | 87 | 603 |
| 2 1/4 | 32 | 208 | 98 | 81 | 162 | 116 | 100 | 707 |
| 2 1/2 | 32 | 227 | 105 | 87 | 168 | 119 | 113 | 806 |
| 2 3/4 | 32 | 243 | 112 | 91 | 174 | 127 | 124 | 1000 |
| 3 | 38 | 271 | 121 | 104 | 194 | 135 | 136 | 1440 |
Correct Installation
Place the saddle on the live (long) end of the rope.
The U-bolt goes over the dead (short) end. Always torque nuts to specification and re-torque after initial load.
Number of Clips Required
Use 3 clips for ropes up to 16mm, 4 for 19-22mm, 5 for 25-32mm.
Space clips at 6x rope diameter. Always follow manufacturer specifications for your specific application.
Applications
Frequently Asked Questions
How many wire rope clips do I need?
General rule: 3 clips for ropes up to 16mm, 4 clips for 19-22mm, 5 clips for 25-32mm. Always follow manufacturer specifications for your specific application.
What is the difference between wire rope clips and wire rope grips?
Wire rope clips (also called bulldog grips) are used to secure the ends of wire ropes. Wire rope grips are similar but often have color-coded saddles for easier identification and may have different designs for specific applications.
How do I install wire rope clips correctly?
Always place the saddle of the clip on the live (long) end of the rope, not on the dead (short) end. The U-bolt goes over the dead end. Torque nuts to manufacturer specifications and re-torque after initial load.
